Amplitude Damping

Amplitude damping is one of the simplest open quantum-system models. It describes irreversible decay from an excited spin state to the ground state through coupling to an environment.

For a single spin with zero Hamiltonian,

\[H = 0,\]

and collapse operator

\[L = \sqrt{\gamma}\,\sigma_-,\]

the density matrix evolves according to the Lindblad master equation

\[\frac{d\rho}{dt} = -i[H,\rho] + L\rho L^\dagger - \frac{1}{2} \left\{ L^\dagger L,\rho \right\}.\]

Starting from the excited state, the excited-state population decays exponentially,

\[P_{\uparrow}(t) = e^{-\gamma t}.\]

This provides a simple analytic benchmark for the open-system evolution implemented in OpenSpinDynamics.jl.

Model

We construct a single-spin model with a vanishing Hamiltonian and use $spin_operators$ to obtain the lowering operator.

using OpenSpinDynamics
using SparseArrays
using LinearAlgebra
using CairoMakie

γ = 0.5
N = 1

model = SpinModel(
    N;
    Jxy=0.0,
    Jz=0.0,
)

ops = spin_operators(N)

The initial state is chosen to be the spin-up state along the $z$ direction.

ψ0 = polarized_state(
    N;
    direction=:z,
)

ρ0 = sparse(ψ0 * ψ0')

The amplitude-damping collapse operator is

\[L = \sqrt{\gamma}\,\sigma_-.\]

lindblad_ops = [
    sqrt(γ) * ops.minus[1],
]

To measure the excited-state population, we use the projector

\[P_\uparrow = \frac{I+\sigma_z}{2}.\]

I2 = sparse(Matrix{Float64}(I, 2, 2))

Pup = 0.5 .* (
    I2 + ops.z[1]
)

times = collect(
    range(0.0, 8.0; length=200)
)

Lindblad evolution

The density matrix can now be evolved directly from the SpinModel.

population = evolve(
    model,
    ρ0,
    times,
    [Pup];
    method=:expm,
    lindblad_ops=lindblad_ops,
)

For this model, the exact solution is

\[P_{\uparrow}(t) = e^{-\gamma t}.\]

exact = exp.(-γ .* times)

max_error = maximum(
    abs.(population[:, 1] .- exact)
)

max_error

3.3306690738754696e-16

The numerical result should agree with the analytic solution up to numerical precision.

Numerical result

fig = Figure(size=(700, 420))

ax = Axis(
    fig[1, 1];
    xlabel="Time",
    ylabel="Excited-state population",
    title="Single-spin amplitude damping",
)

lines!(
    ax,
    times,
    population[:, 1];
    label="OpenSpinDynamics.jl",
    linewidth=2,
)

lines!(
    ax,
    times,
    exact;
    label="Exact",
    linestyle=:dash,
    linewidth=2,
)

axislegend(ax)

fig

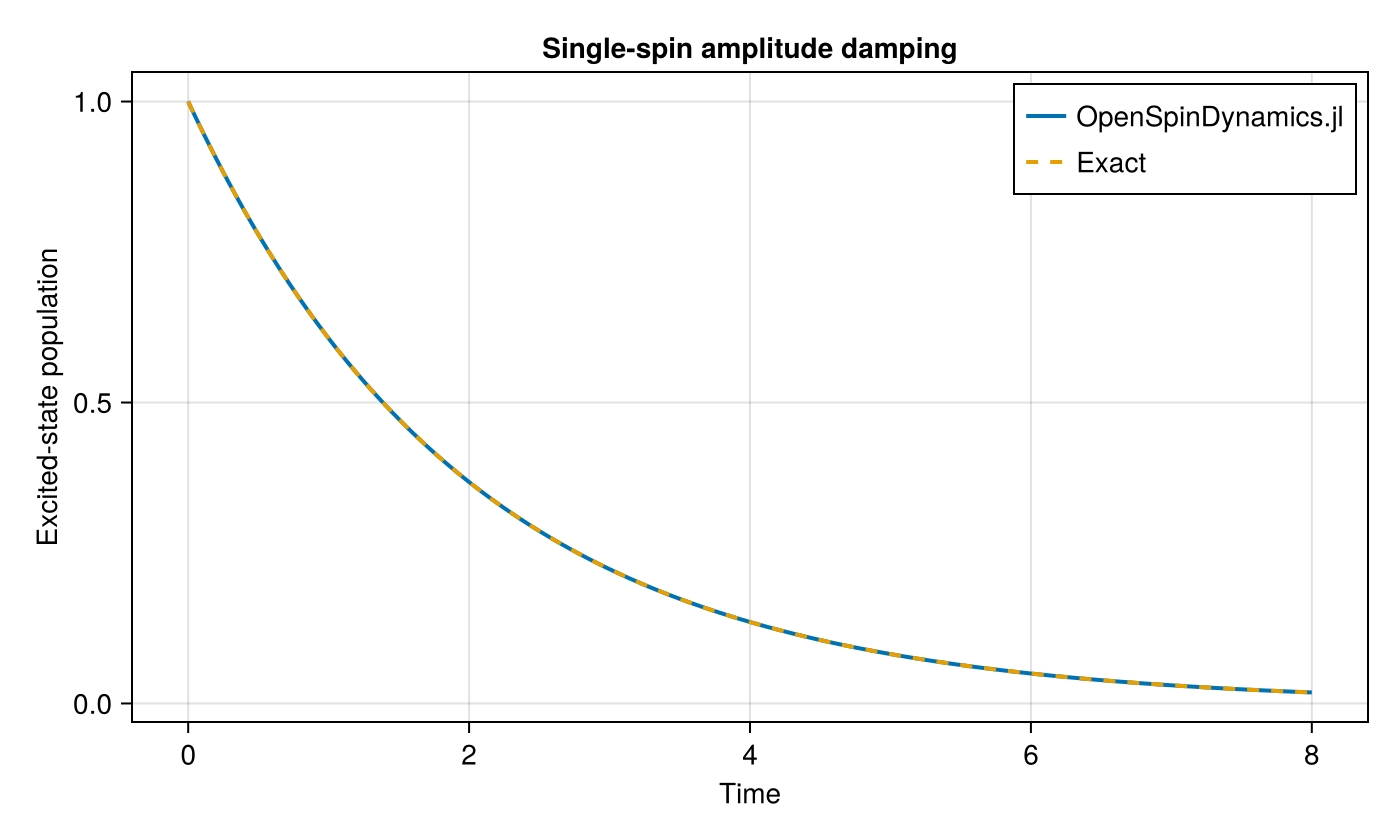

The excited-state population decays exponentially from one to zero. The numerical Lindblad evolution follows the exact result

\[P_{\uparrow}(t)=e^{-\gamma t},\]

demonstrating the expected dissipative dynamics of a single spin undergoing amplitude damping.
